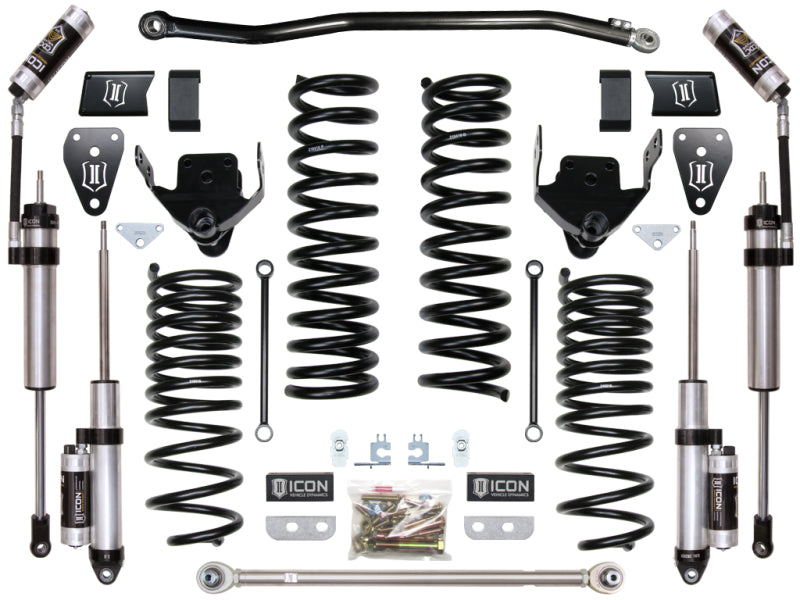

ICON Vehicle Dynamics suspension systems for the 2014-2026 Ram 2500 4WD were designed with exceptional performance and ride quality in mind. This Stage 3 system includes ICON-engineered 4.5” dual rate coil springs, high-strength laser cut bracketry, billet bump stop spacers, fabricated rear coil spacers, and all hardware necessary for a complete install. Vehicle-specific ICON 2.5 Aluminum Series remote reservoir shocks help deliver balanced performance front to rear, while CDC (Compression Damping Control) Valve technology allows the user to adjust compression characteristics of the shocks with the turn of a knob. These features make this Stage 3 system a huge upgrade for 2014-2026 Ram 2500 4WD trucks that are not only used for daily driving and towing, but spirited off-road driving as well.

• 2.5 Aluminum Series piggyback reservoir rear shocks compliment rear coils in both length and damping tune for increased rear wheel travel and suspension performance
• ICON-engineered dual rate front coil springs deliver 4.5" of front lift and exceptional vehicle control over varying terrain
• Vehicle specific tuned front 2.5 Aluminum Series remote reservoir shocks provide superior damping and ride quality
• All shock absorbers equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
• Vehicle specific tuned front and rear 2.5 Aluminum Series shocks provide superior damping and ride quality
• PTFE lined spherical track bar bearings eliminate bushing deflection for improved handling characteristics
• Performance triple rate rear coil springs provide 2" of rear lift and more compliant ride quality
• Precision CNC laser cut, fabricated radius arm drop brackets correct suspension geometry
• Allows use of larger, more aggressive wheel tire combinations up to 37" diameter
• Adjustable front and rear track bars realign axles and improve strength
• Increased wheel travel and suspension performance over stock
• Level stance from front to rear of vehicle
